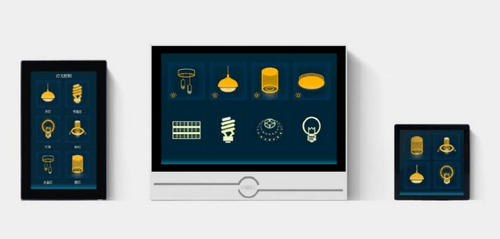

Classic 4/5/10inch KNX touch screens
OSIX SMART’s Classic 4/5/10inch KNX Touch Screens bring tailored intelligent control to every corner of your space, with three versatile size options to fit diverse installation scenarios—from compact residential nooks to spacious commercial lobbies. Boasting a highly responsive touch interface, these screens deliver intuitive operation of lighting, HVAC, security, and all connected KNX devices, while their sleek, timeless design seamlessly integrates with any interior style. Backed by reliable KNX protocol compatibility and stable performance, they offer a perfect blend of usability and aesthetics, making them ideal for both residential and commercial smart building projects.
More Details
Smart Touch Screen
4/5/10-inch Smart HD Touch Screen
E/ITP100211.1
Main Functions
- Supports switching, dimming, curtain control, scene control, temperature control, etc.
- Supports daily timing.
- Supports ETS group address import.
- Allows interface update via USB or TF Card.
- Equipped with user-friendly interface design software.
- Supports Chinese language display.
- Customizable interface icons, backgrounds, and other resources.
Product Parameters
- Resolution: 720*720, 540*960, 1280*800
- Bus voltage: DC21V~30V (obtained via bus)
- Bus current: <12mA
- Bus power consumption: <360mW
- Auxiliary power supply: DC12V~30V
- Power consumption: <4W
- Proximity sensing distance: <30cm
- Hardware: Quad-core A7 processor, 1.0GHz
Size
248*198*28.5mm
