I series KNX panels

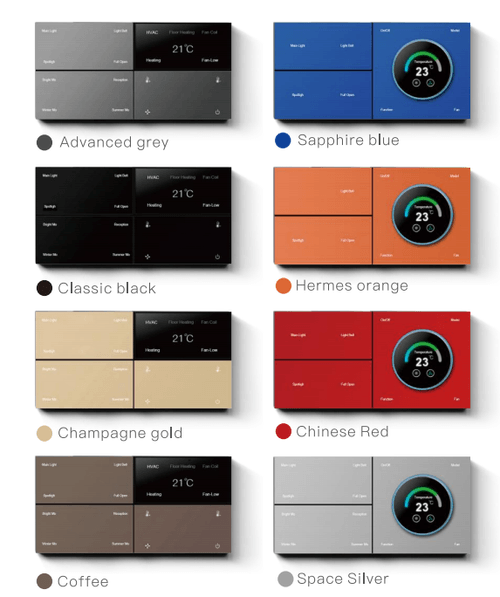

OSIX SMART’s KNX I Series Panels redefine intelligent building control by combining multi-modal operation with customizable aesthetics, making them the ideal choice for diverse residential, commercial, and hospitality spaces. Designed to prioritize user experience without compromising on style, this series stands out with its integrated display, tactile buttons, precision rotary controls, and a rich palette of color options—delivering both functional excellence and seamless interior integration.
More Details
Main Functions
- Switching and dimming functions
- Value sending function
- Special scene functions
- Logic functions
- Shutter functions
- Scene calling and storing functions
- Long-press and short-press functions
- LED indicator functions
Product Parameters
- Bus voltage: DC21V~30V (obtained via bus)
- Bus current: <12mA
- Bus power consumption: <360mW
- Auxiliary power supply: DC21V~30V
- Power consumption: <1W
- Operation and indication:
- Each product is equipped with a programmable backlight
- Each button corresponds to an LED indicator
- Red LED and programming button for assigning physical addresses
- Green LED flashes to indicate normal operation of the device application layer
- Protection class: IP20
- Temperature range:
- Operation: -5℃~+45°C
- Storage: -25℃~+55°C
- Transportation: -25℃~+70°C
Size
86*86*6.7mm
Installation
wall mounted, fits in 86*86mm wall boxes
