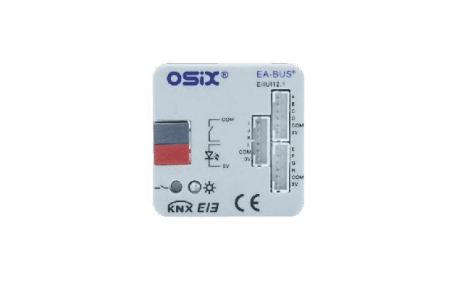

KNX 4/8/12 fold universal interface
Professional multi-channel KNX universal interface engineered for global smart automation projects. The 4/8/12-channel variants support diverse signal types, allowing seamless integration of third-party devices into KNX ecosystems. Enable scene linkage, remote control, and schedule-based operations to optimize energy usage and user comfort. Compliant with CE, RoHS, and KNX certification requirements, it meets the technical standards of European, Russian, and Asian markets. Easy to install, commission, and maintain for international partners.
More Details
Main Functions
- Switching and dimming functions
- Value/forced output function
- Scene control function
- Switch sequence function
- Shutter function
- Counter function
- Multiple operation functions
- Each channel can be programmed as input or LED indication function
Product Parameters
- Bus voltage: DC21V~30V (obtained via bus)
- Bus current: <12mA
- Bus power consumption: <360mW
- Output/input:
- 4/8/12-channel passive buttons
- Each channel can be programmed as input port or LED indication port
- Temperature range:
- Operation: -5℃~+45°C
- Storage: -25℃~+55°C
- Transportation: -25℃~+70°C
Size
43*43*11mm(L*W*H)
Installation
Flush Mounted
