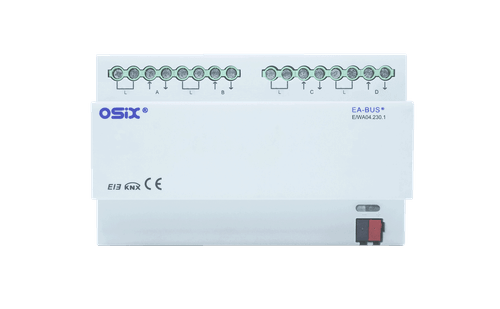

KNX 4-Fold Curtain Actuator
A high-performance 4-channel KNX actuator for precise control of motorized curtains, blinds, and shutters. Supports smooth opening/closing, position adjustment, scene linkage, and time scheduling via KNX bus. ETS-programmable, DIN-rail mountable, with overload protection. Ideal for residential and commercial smart space automation.
More Details
KNX 4-Fold Curtain Actuator
E/WA04.230.1
Main Functions
- Supports shutter and opening/closing curtain functions
- Scene/preset value function
Product Parameters
- Bus voltage: DC21V~30V (obtained via bus)
- Bus current: <12mA
- Bus power consumption: <360mW
- Auxiliary power supply: AC95V~255V, 50/60Hz
- Temperature range:
- Operation: -5℃~+45°C
- Storage: -25℃~+55°C
- Transportation: -25℃~+70°C
Size
90*146*64mm
Installation
DIN-rail Mounted
