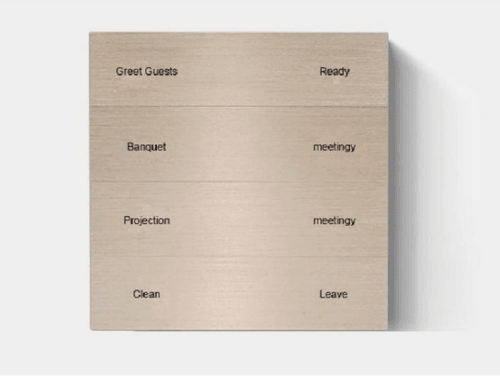

Metal Gold KNX panel
Our Metal Gold KNX Panel combines luxurious aesthetics with professional smart control. Featuring high-grade gold-finished metal housing (corrosion and scratch resistant), it blends seamlessly into diverse interiors while ensuring long-lasting durability. Fully KNX-certified, it integrates with lighting, shading, HVAC and home appliances, offering intuitive backlit touch control for quick scene switching. Easy to install, it’s the ideal choice for smart homes and commercial spaces.
More Details
Main Functions
- Switching and dimming functions
- Value sending function
- Special scene functions
- Logic functions
- Shutter functions
- Scene calling and storing functions
- Long-press and short-press functions
- LED indicator functions
Product Parameters
- Bus voltage: DC21V~30V (obtained via bus)
- Bus current: <12mA
- Bus power consumption: <360mW
- Auxiliary power supply: DC21V~30V
- Power consumption: <1W
- Operation and indication:
- Each product is equipped with a programmable backlight
- Each button corresponds to an LED indicator
- Red LED and programming button for assigning physical addresses
- Green LED flashes to indicate normal operation of the device application layer
- Protection class: IP20
- Temperature range:
- Operation: -5℃~+45°C
- Storage: -25℃~+55°C
- Transportation: -25℃~+70°C
Size
86*86*6.7mm
Installation
wall mounted, fits in 86*86mm wall boxes
