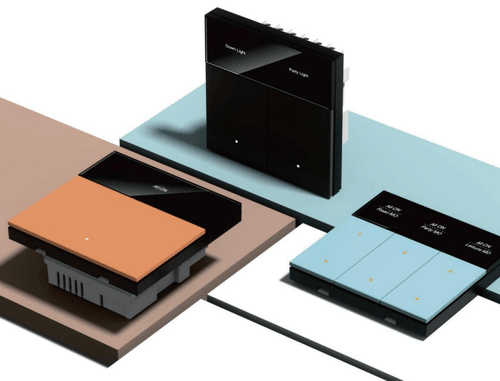

S series KNX Panels
Experience the best of form and function with OSIX SMART’s KNX S Series Panels. Equipped with a responsive touchscreen, they offer direct, user-friendly control over all connected KNX devices (lighting, HVAC, security, etc.). What’s more, with a variety of trendy color finishes available, these panels seamlessly integrate into modern residential, commercial, or hospitality interiors—no compromise on style or performance. Built for reliability and easy installation, the S Series redefines intelligent control with personalized design.
More Details
Main Functions
- Switching and dimming functions
- Value sending function
- Special scene functions
- Logic functions
- Shutter functions
- Scene calling and storing functions
- Long-press and short-press functions
- LED indicator functions
Product Parameters
- Bus voltage: DC21V~30V (obtained via bus)
- Bus current: <12mA
- Bus power consumption: <360mW
- Auxiliary power supply: DC21V~30V
- Power consumption: <1W
- Operation and indication:
- Each product is equipped with a programmable backlight
- Each button corresponds to an LED indicator
- Red LED and programming button for assigning physical addresses
- Green LED flashes to indicate normal operation of the device application layer
- Protection class: IP20
- Temperature range:
- Operation: -5℃~+45°C
- Storage: -25℃~+55°C
- Transportation: -25℃~+70°C
Size
86*86*6.7mm
Installation
wall mounted, fits in 86*86mm wall boxes
